ET Calibration

ET Calibration

Digital Multimeter

Data Acquisition System

Calibration of Clamp Meter

Power Meter / Analyzer

Thermocouple and Temperature indicator

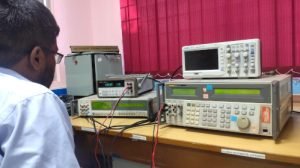

Calibration of Digital Multimeter

Calibration Standard	Facility	Range	CMC
EURAMET Cg-15	Using Multiporduct Calibrator Fluke 5520A
	DC Voltage-	10mV to 1000V	0.03 % to 0.006 %
	DC Current-	10uA to 20A	0.3 % to 0.12 %
	AC Voltage-	10mV to 1000V	0.14 % to 0.04%
	AC Current-	300uA to 20A	0.2 % to 0.15%
	Resistance-	1Ω to 1000MΩ	0.14 % to 2.0 %
	Frequency-	12 Hz to 100 kHz	0.001%

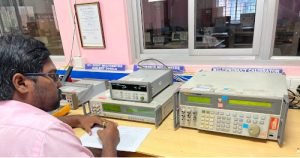

Calibration of Data Acquisition System

Calibration Standard	Facility	Range	CMC
EURAMET Cg-15	Using Multiporduct Calibrator Fluke 5520A
	DC Voltage-	10mV to 1000V	0.03 % to 0.006 %
	DC Current-	10uA to 20A	0.3 % to 0.12 %
	AC Voltage-	10mV to 1000V	0.14 % to 0.04%
	AC Current-	300uA to 20A	0.2 % to 0.15%
	Resistance-	1Ω to 1000MΩ	0.14 % to 2.0 %
	Frequency-	12 Hz to 100 kHz	0.001%

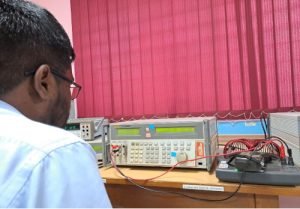

Calibration of Clamp Meter

Calibration Standard	Facility	Range	CMC
	Using Multiporduct Calibrator Fluke 5520A
	DC Voltage-	10mV to 1000V	0.03 % to 0.006 %
	DC Current-	10uA to 20A	0.3 % to 0.12 %
		20A to 1000A	0.12% to 0.3%
	AC Voltage-	10mV to 1000V	0.14 % to 0.04%
	AC Current-	300uA to 20A	0.2 % to 0.15%
		20A to 1000A	0.15% to 0.4%
	Resistance-	1Ω to 1000MΩ	0.14 % to 2.0 %
	Frequency-	12 Hz to 100 kHz	0.001%

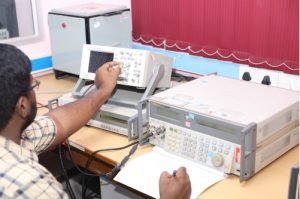

Calibration of Oscilloscope

Calibration Standard	Facility	Range	CMC
EURAMET Cg-7	Using Multiporduct Calibrator Fluke 5520A with SC 600 Option
	AC voltage Oscilloscope	10 mV to 40 V	0.25 % to 0.50 %
	DC Voltage Oscilloscope	10 mV to 40 V	1.1 % to 0.48 %
	Bandwidth of Oscilloscope	1 MHz to 600 MHz	5%
	Time base of Oscilloscope	1nS to 5 S	0.16%

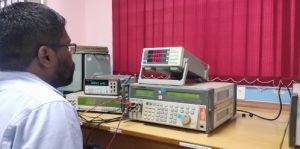

Calibration of Power Meter / Analyzer

Facility	Range	CMC
Using Multiporduct Calibrator Fluke 5520A
DC Power	15 W to 1.8 kW	0.03 % to 0.19 %
AC Power 1Ø	1 W to 12 kW	0.15 % to 0.19 %
Power Factor	0.2 PF to 1 PF	0.0148 PF to 0.002PF

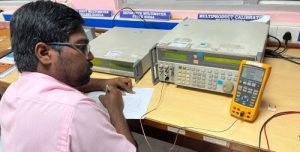

Thermocouple and Temperature indicator using Temperature simulation

Calibration Standard	Facility	Range	CMC
EURAMET Cg-11	Using Multiporduct Calibrator Fluke 5520A
	Temperature Simulation		Source	Measure
	B Type	600 °C to 1800 °C	0.78 °C	0.78°C
	E Type	-200 °C to 1000 °C	0.6 °C	0.6°C
	J Type	-200 °C to 1200 °C	0.3 °C	0.35°C
	K Type	-200 °C to 1350 °C	0.49 °C	0.49°C
	N Type	-200 °C to 1300 °C	0.49 °C	0.49°C
	R Type	100 °C to 1750 °C	0.68 °C	0.68°C
	S Type	100 °C to 1750 °C	0.57 °C	0.57°C
	T Type	-200 °C to 400 °C	0.75 °C	0.16°C
	RTD	-200 °C to 800 °C	0.27 °C	0.45°C

Calibration of Current Shunt

Facility	CMC
Using Multiporduct Calibrator Fluke 5520A And Digital Multimeter
DC Current	0.3 % to 0.12 %
AC Current	0.2 % to 0.15%
